CNC Turning & Milling

Precision Machining has been D&E’s focus since our founding.

D&E Turning and Milling equipment includes vertical and horizontal mills and lathes with multi-tasking machine centers, live tooling capabilities, and automated pallet changers.

D&E Capabilities include:

Drilling
Tapping
Countersinking,
Threading and producing blind holes using advanced equipment operated by experienced machinists.

Precision Milling

Up to 5-axis machining capabilities
Spindles operate at up to 15,000 rpm
Up to 40″x40″x40″ (1016 mm x 1016 mm x 1016 mm) envelope or 1000lbs
Tolerances of +/- 0.001″ (0.025 mm) or below*

Precision Turning

Live Tooling and Twin Turret capabilities
Gripping Outside Diameters from 1″ (25.4 mm) through 19.6″ (498 mm)
Gripping Inside Diameters from 1″ (25.4 mm) through 17″ (432 mm)
Machines capable of bar feeding up to 4″ (102 mm) OD
Shaft lengths of up to 24″
Tolerances of +/- 0.001″ (0025 mm) or below*

*Tighter tolerances can be accommodated based on configuration

Our Equipment

CNC Lathes

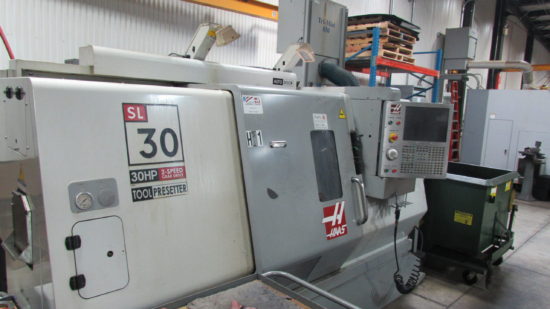

Haas SL-30 CNC Lathes (2)

12 Tool
12-inch, three-jaw chucks
Tail stock
30 Horsepower
2000 rpm

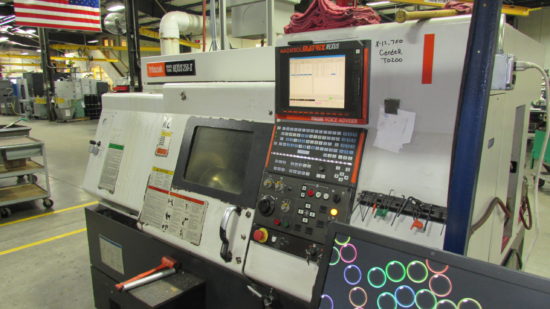

Mazak Quick Turn Nexus 250 II CNC Lathe

10-inch, three-jaw chucks
Programmable tail stock
3-inch bar capacity
4000 RPM, 30 HP spindle
12 tool stations
Parts catcher

Doosan PUMA 400 CNC Lathe

1500 RPM Spindle
Turning Diameter 20.5 inches
19″ Compensating Chuck
Horsepower 49.6
Programmable Tailstock

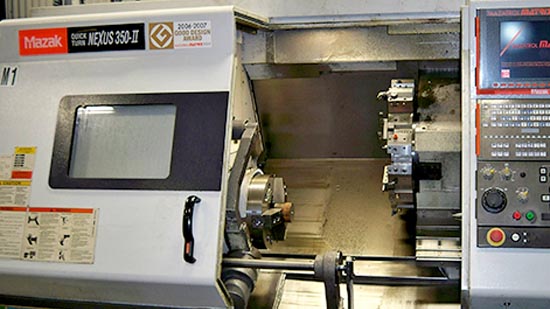

Mazak Quick Turn Nexus 350 II CNC Lathe

12-inch, three-jaw chucks
Programmable tail stock
4-inch bar capacity
4000 RPM, 35 HP spindle
12 tool stations
Parts catcher

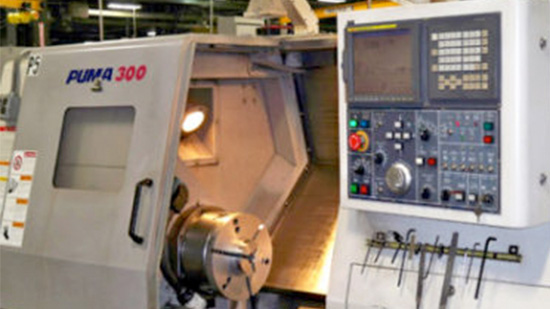

Daewoo Puma 300 CNC Lathes (4)

(2)10-inch and (2)12-inch
three-jaw chucks
Programmable tail stocks
1500 RPM, 60 HP spindles
40-inch maximum shaft length
12 tool stations

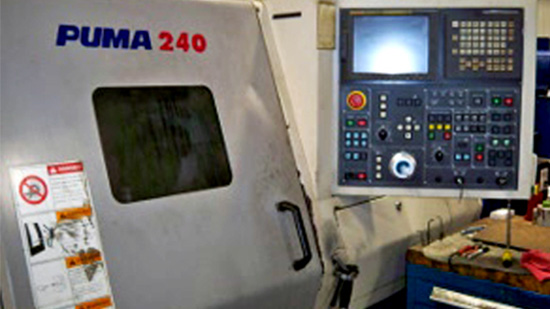

Daewoo Puma 240B CNC Lathe

8 inch, three-jaw chuck
Programmable tail stock
2800 RPM, 30 HP geared spindle
25.5-inch maximum shaft length
12 tool stations

Leadwell LTC50 CNC Lathe

18-inch, three-jaw chuck
Programmable tail stock
1500 RPM, 60 HP spindle
40-inch maximum shaft length
12 tool stations

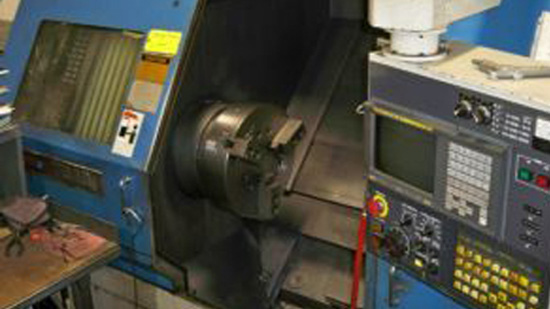

Ikegai TU-40 CNC Lathe

18-inch, three-jaw chuck
Tail stock
1500 RPM, 50 HP spindle
40-inch maximum shaft length
12 tool stations

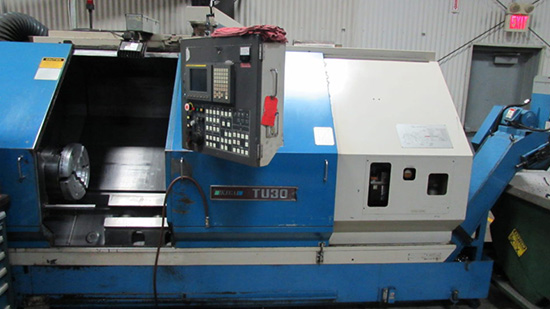

Ikegai Tu-30 CNC Lathe

12 Tool
2800 RPM Spindle
Turning Diameter 16.5 inch OD
Up to 36″ of “Z” Travel
15″ Chuck
35 Horsepower

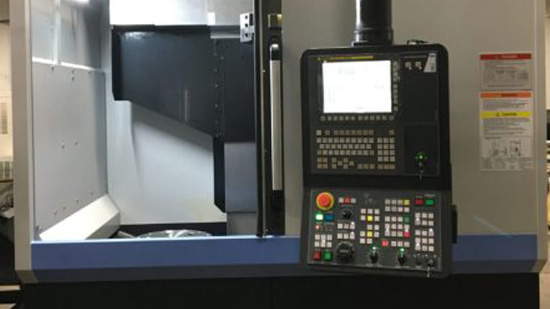

Doosan Puma V8300 Vertical Turret CNC Lathe (VTL)

18 Inch, three-jaw chuck
Turning Diameter 19.5 inches
Turning Length 24″
Horsepower 50

CNC Lathes (Bar Feeding)

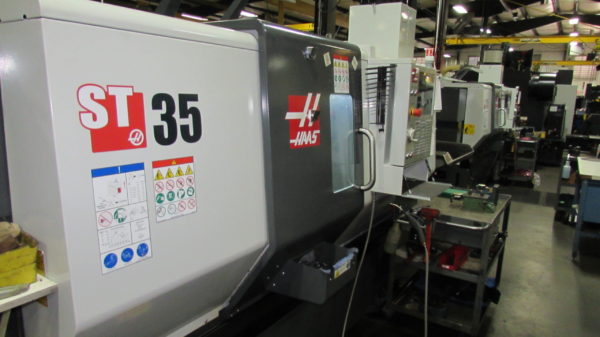

HAAS ST-35 (2)

Up to 4″ bar/tube diameter
12 tool
3200 RPM
Automatic Feeder
40 HP

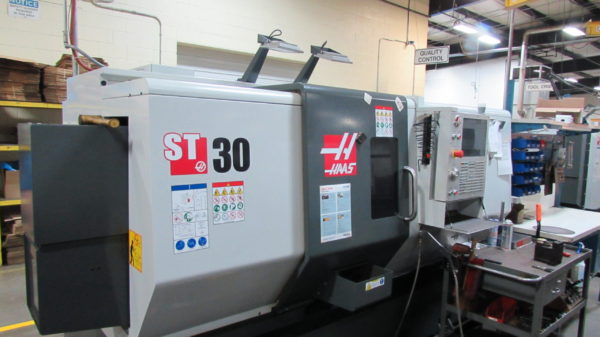

HAAS ST-30 (1)

Up to 3″ bar/tube diameter
12 tool
3200 RPM
Automatic Feeder
30 HP

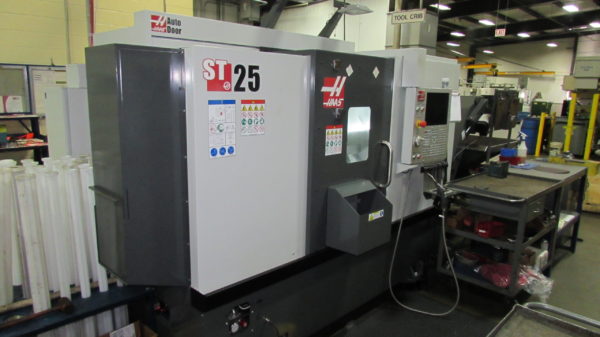

HAAS ST-25 (1)

Up to 3″ bar/tube diameter
12 tool
3200 RPM
Automatic Feeder
30 HP

CNC Mills

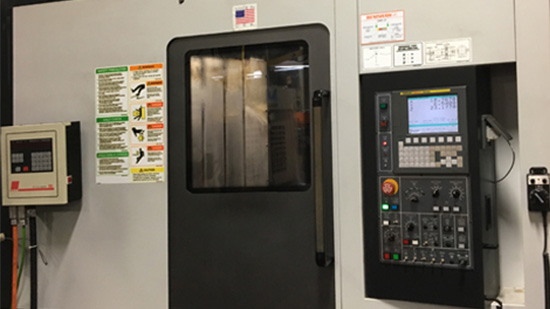

Doosan VC 430

Machining envelope of 22″ x 17″ x 22″
40 tool stations
CAT 40 big plus tool holders
Thru spindle coolant
Renishaw tool probe
2 pallets (28″ x 19″)
Automatic pallet changer
360-degree automatic indexer

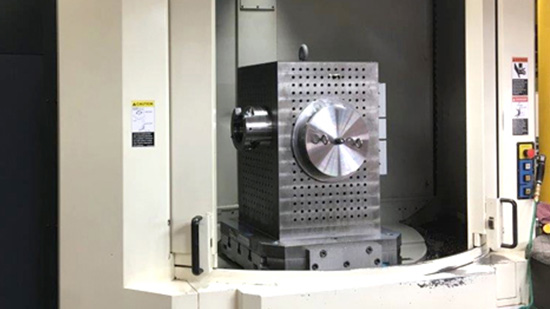

Makino A81 Horizontal CNC Mill w/Pallet Changer

Machining envelope of 40″ x 40″ x 40″
60 tool stations
CAT 50 tool holders
10,000 RPM spindle
Thru hole spindle coolant
Renishaw probe
2 pallet, automatic pallet changer
Fully controlled, 360-degree indexable table

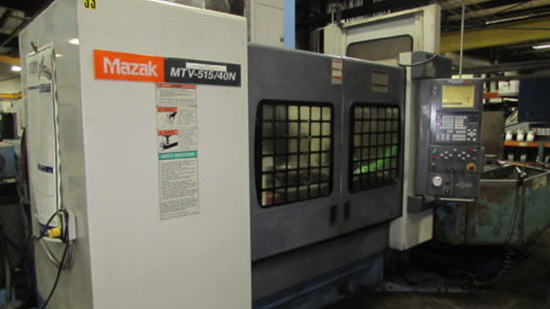

Mazak V 515/40N Vertical CNC Mill w/Pallet Changer

6,000 RPM spindle
60 tool stations
CAT 50 tool holders
Touch sensor probe
Machining envelope of 20″ x 40″ x 30″
2 pallet, automatic pallet changer

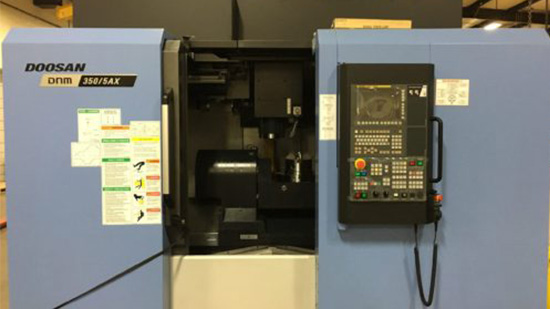

Doosan DNM350/5AX Mill

Jergens QLS/Fixture Pro Work Holding
Max Work Piece Size: 15.8” Dia. X 11.8” H
5 Axis Capability
25hp / CAT40 Big Plus / 12,000 RPM Spindle
Thru-spindle high pressure coolant
Renishaw RMP600 Machine Probe / RTS Radio Tool Setter

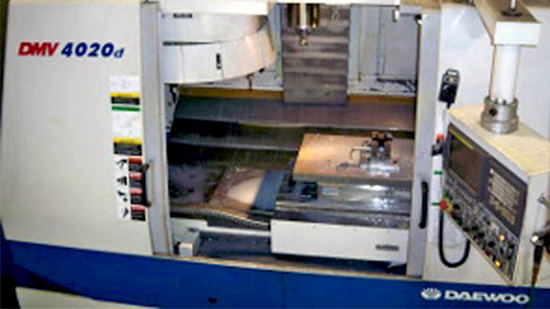

Daewoo DMV 4020 Vertical CNC Mill w/Pallet Changer

6,000 RPM, 20 HP spindle
16 tool stations
CAT 50 tool holders
Machining envelope of 40.2″ x 20.1″ x 24.6″
2 pallet, automatic pallet changer

Okuma GENOS M560-V

Travels: X: 41.34″ Y: 22.05″ Z: 18.11″
15,000 RPM
CAT 40 Tool Holders
Thru Spindle Coolant
High Speed 32 Position Tool Changer

Multi-Tasking Machines

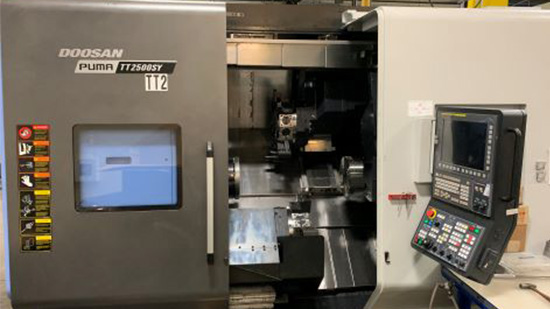

Doosan TT2500SY (2)

Twin Turret 12 Inch Chucks
Live Tooling
3500 RPM Spindles
35HP

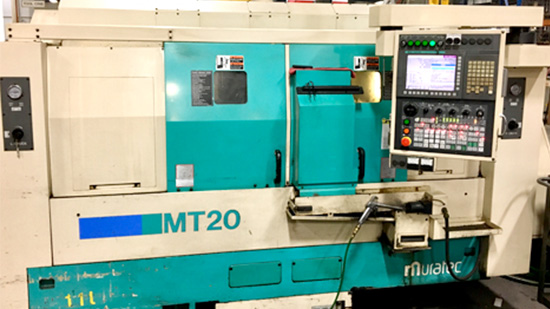

Murata MT-20

Live tooling
Dual Bay / Twin Spindles and Turrets
3600 RPM
8-Inch Chuck

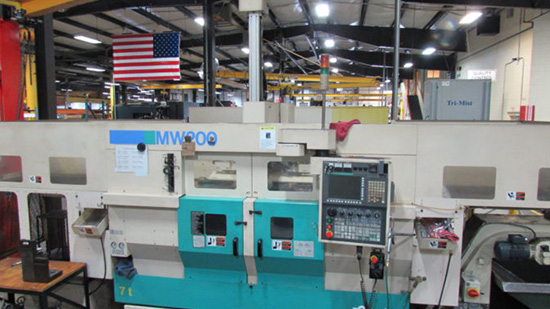

Murata MW 200 CNC Lathe w/Gantry Loader

Twin Spindle
10 Tool
2400 RPM/30HP
8 & 10 Inch Chucks

Saws

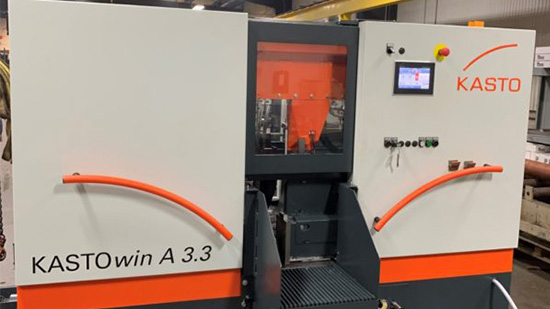

KASTOwin A 3.3 CNC Bandsaw

Up to 13 inch OD Cut
Up to 13.78″ x 13.00″ Square Cut
Down to 0.39 inch Cutoff Length
8HP

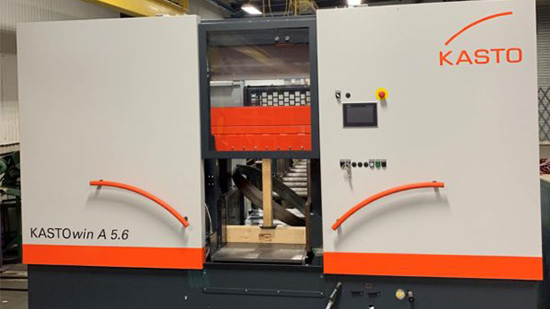

KASTOwin A 5.6 CNC Bandsaw

Up to 22.05 inch OD Cut
Up to 22.05″ x 22.05″ Square Cut
Down to 0.39 inch Cutoff Length
10HP

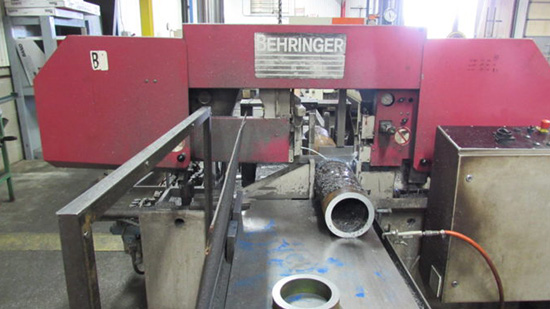

Behringer 360 A CNC Bandsaw

Up to 16 inch OD Cut
Up to 16.00″ x 16.00″ Square Cut
Down to 0.40 inch Cutoff Length
7HP

Request A Free Quote Today!

D&E is a fully integrated producer of precision CNC-machined components and assemblies that meet customer specifications and standards within Aerospace, Defense and Commercial Industries. We look forward to reviewing your next project, lets talk.
